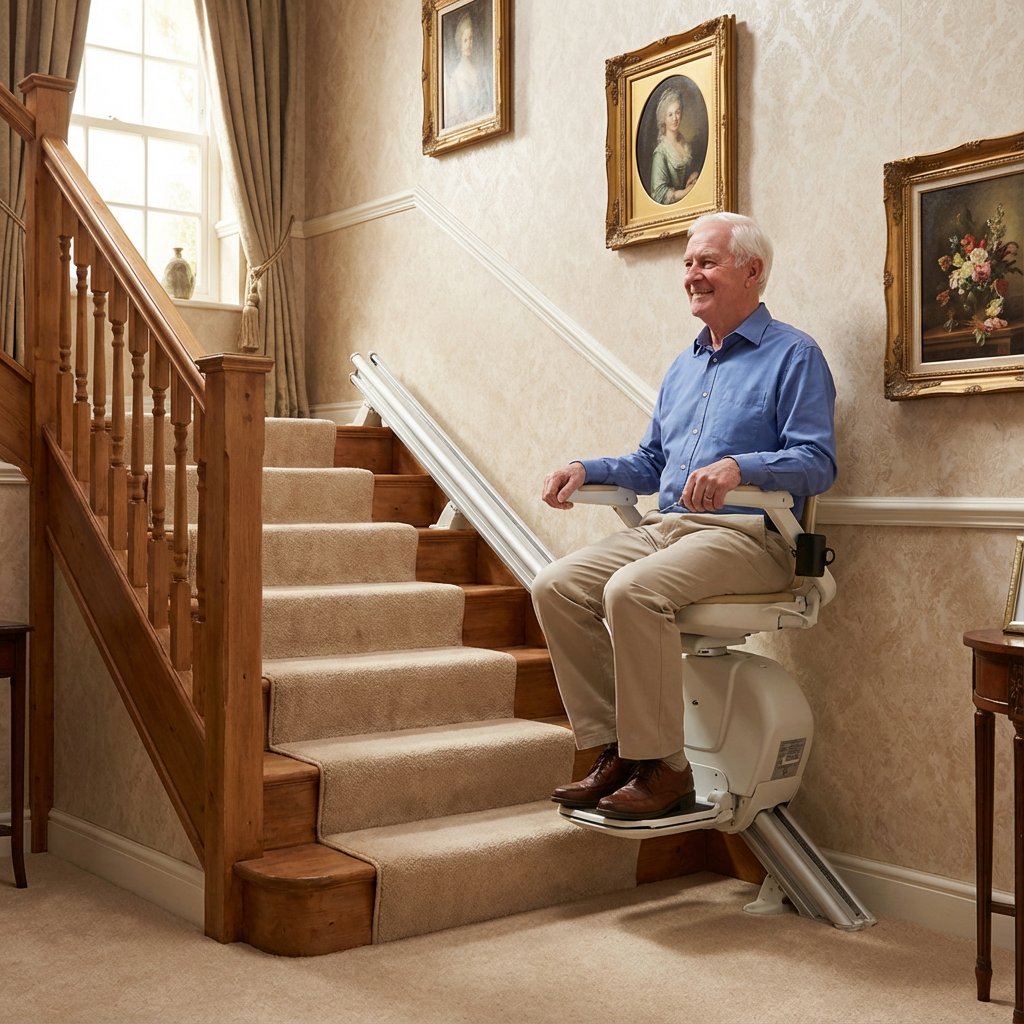

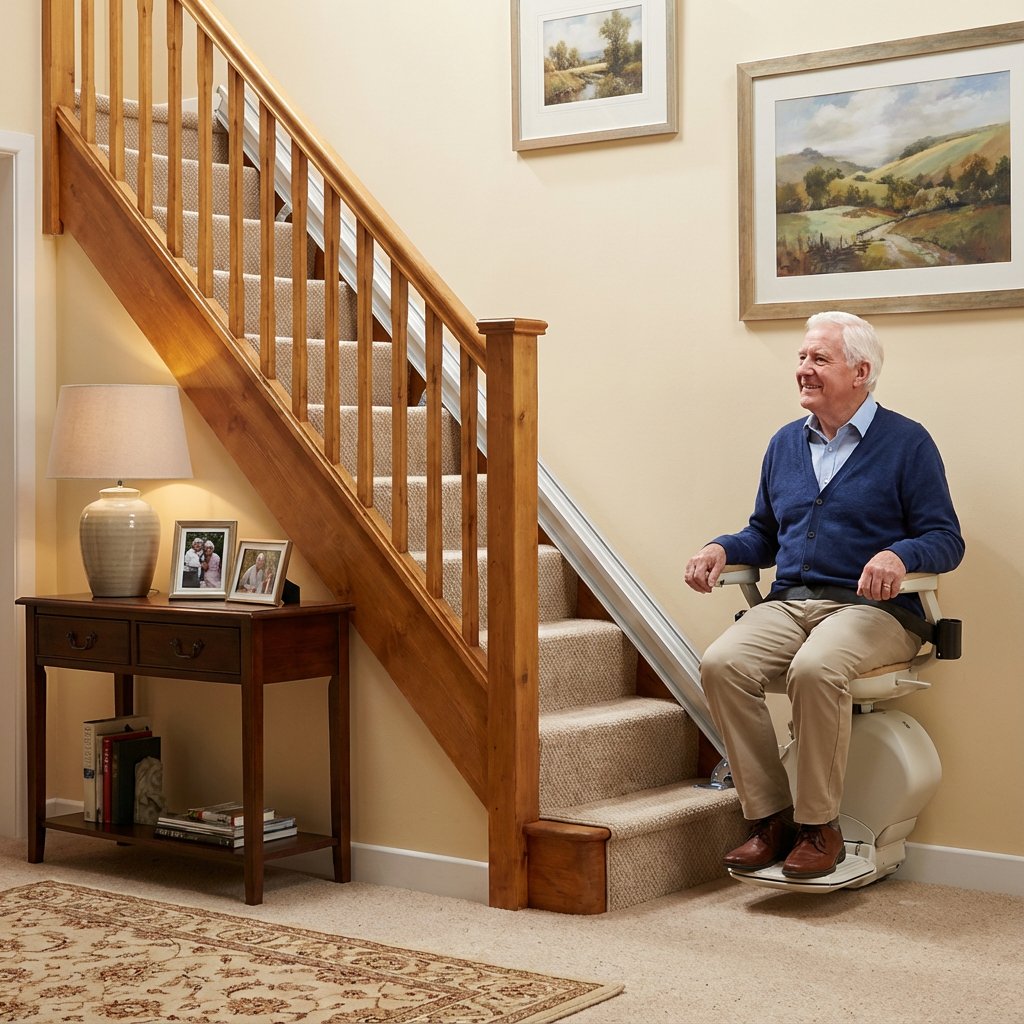

Brooks Acorn 130 Stairlifts for Straight Staircases

The Brooks Acorn 130 serves straight staircases with 127kg weight capacity, 0.12 meters per second travel speed, and diagnostic display monitoring system status. Manchester Stairlifts installs new Acorn 130 models from £995 and reconditioned units from £1,195 as an authorized Acorn partner, providing factory-trained installation, genuine parts, and manufacturer warranty support. Installation completes within 2 hours for standard configurations, with rail mounting directly to stair treads requiring no structural modifications.

Brooks Acorn 130 Technical Specifications

Understanding Acorn 130 specifications ensures appropriate model selection matching staircase dimensions and user requirements. The Acorn 130 represents Acorn's flagship straight stairlift, developed through continuous refinement from the original Acorn Superglide design.

Physical Dimensions

Acorn 130 measurements accommodate most standard straight staircases:

Space requirements:

• Minimum staircase width: 750mm (with Acorn 130 folded)
• Passing clearance when folded: 500mm on 750mm stairs
• Landing depth required: 400mm minimum for safe transfers

For staircases measuring 750mm to 850mm, the Acorn 130's compact folding design preserves adequate passing space. Narrow staircase installations benefit from the slim 250mm folded profile. Compare all stairlift options to determine best fit for your requirements.

Performance Specifications

Acorn 130 operational characteristics:

Motor and drive system:

• Motor power: 300W continuous rating
• Drive mechanism: Rack and pinion
• Gearbox ratio: 24:1 reduction
• Voltage: 24V DC battery operation
• Smooth-start technology: Prevents jarring acceleration

Battery and Power System

Acorn 130 battery specifications ensure reliable operation:

Charging system features:

• Continuous trickle charging when parked
• Charging points at top and bottom landings
• LED indicators: Green (full), amber (charging), red (low)
• Automatic protection against overcharging

Safety Features and Compliance

The Acorn 130 integrates comprehensive safety systems meeting BS 5776 British Standard requirements as standard equipment. All safety features come included without additional cost.

Standard Safety Equipment

Obstruction detection:

• Infrared sensors at footrest level
• Pressure-sensitive carriage edges
• Stopping distance: 50-100mm from obstacle

Braking systems:

• Electronic motor braking with smooth deceleration
• Mechanical fail-safe brake engaging on power loss
• Brake holding capacity: 300kg+ on maximum incline

User safety:

• Retractable lap seatbelt with interlock (1,500-2,000N strength)
• 90-degree swivel seat with automatic lock
• Emergency stop button (0.3-0.5 second response)
• Manual descent crank for power-free operation

Diagnostic display:

• Real-time battery and system status
• Error code display for troubleshooting
• Service reminder notifications

For complete safety specifications and compliance details, see stairlift safety features.

Acorn 130 Features and Options

The Acorn 130 offers configurable features matching individual requirements and preferences.

Standard Features (Included)

Every Acorn 130 installation includes:

• Folding footrest: Manual or powered, reduces stored width
• Folding seat: Compact storage position
• Folding armrests: Further width reduction when parked
• Seatbelt: Retractable with interlock
• Diagnostic display: Battery and system status
• Smooth-start technology: Gentle acceleration and deceleration
• Remote controls: Two handsets for call/send operation
• Key switch: Optional security for multi-user homes

Optional Upgrades

Available enhancements for Acorn 130:

Hinged Rail Option

The Acorn 130 hinged rail addresses bottom-of-stairs obstructions:

Applications:

• Doorways adjacent to staircase bottom
• Narrow hallways requiring full clearance
• Fire escape route compliance
• Wheelchair access past staircase

Hinged rail specifications:

• Manual or powered hinge operation
• Locks securely in both positions
• 90-degree fold clearing doorway
• Requires 1.2m clearance when folded
• Adds £200-£350 to installation cost

Acorn 130 Pricing

Transparent Acorn 130 pricing reflects configuration complexity, optional features, and new versus reconditioned selection. Manchester Stairlifts provides competitive pricing as an authorized Acorn partner with access to manufacturer programs.

New Acorn 130 Pricing

Price includes:

• Free home survey and measurement
• Professional installation by Acorn-trained engineers
• User demonstration and training
• 12-month parts and labor warranty
• Documentation and service records

Reconditioned Acorn 130 Pricing

Reconditioned Acorn 130 options:

Reconditioned Acorn 130 units undergo full refurbishment including new batteries, upholstery renewal, and 20-point safety inspection before installation.

Warranty Coverage

Standard 12-month warranty includes:

• Complete parts replacement for defects
• Labor coverage for all repair visits
• Emergency callout without additional charges
• Unlimited repair attempts

Extended warranty options:

• 5-year component warranty (Acorn manufacturer program)
• 2-year labor warranty (Acorn manufacturer program)
• Additional 24 or 36 month extensions available

Authorized Acorn partnership provides access to manufacturer warranty programs unavailable through independent installers.

Installation Process

Acorn 130 installation follows streamlined procedures developed by Acorn for efficient, professional fitting.

Pre-Installation Survey

Free home survey activities (30-45 minutes):

1. Staircase measurement capturing length, width, angle
2. Landing assessment verifying transfer space
3. Electrical supply location confirmation
4. User requirement discussion
5. Acorn 130 demonstration and feature explanation
6. Written quotation with itemized pricing

Installation Procedure

Acorn 130 fitting completes within 2 hours typically:

Installation standards:

• Rail mounts to stair treads, not walls
• No structural modifications required
• Carpet protection during work
• Debris removal and cleaning included
• Warranty activation upon completion

Timeline

Maintenance and Servicing

Acorn 130 servicing maintains optimal performance and warranty validity.

Annual Service Requirements

Acorn 130 annual inspection includes:

Mechanical checks:

• Motor performance and brush condition
• Gearbox operation and lubrication
• Drive mechanism wear assessment
• Brake effectiveness measurement
• Rail condition and bracket security

Electrical checks:

• Battery capacity under load
• Charging system effectiveness
• Diagnostic system verification
• Sensor calibration confirmation
• Control responsiveness testing

Safety checks:

• Obstruction sensor sensitivity
• Emergency stop function
• Seatbelt condition and interlock
• Swivel lock engagement

Service Pricing

Common Maintenance Items

Acorn 130 vs Alternative Models

Comparing Acorn 130 with alternatives helps ensure appropriate selection.

Acorn 130 vs Acorn 180

Acorn 130 vs Other Brands

Acorn 130 advantages include superior diagnostic capabilities, compact folded dimensions, and extended manufacturer warranty through authorized partnership.

Authorized Acorn Partnership Benefits

Manchester Stairlifts Acorn authorized partnership provides advantages unavailable elsewhere:

Installation benefits:

• Factory-trained engineers with Acorn certification
• Access to latest installation techniques and tools
• Direct manufacturer technical support
• Quality assurance through Acorn standards

Parts and service:

• Genuine Acorn replacement parts
• Priority parts availability
• Manufacturer-approved repair procedures
• Software updates and enhancements

Warranty advantages:

• 5-year component warranty program
• 2-year labor warranty program
• Extended warranty options
• Manufacturer-backed claims processing

Weight Capacity Considerations

Acorn 130's 127kg weight capacity accommodates 85-90% of users with adequate safety margins for typical daily use. Understanding capacity ratings ensures appropriate model selection matching individual requirements.

Capacity suitability:

• Users up to 120kg: Comfortable margin
• Users 120-127kg: Within rated capacity
• Users over 127kg: Consider 160kg alternatives

Structural margins:

• Tested to 200% rated capacity (254kg)
• Safety factor: 2.0 minimum
• Brake holding: 300kg+ on maximum incline

Users approaching 127kg should discuss capacity requirements during survey. Alternative models with 160kg capacity available when needed.

Getting Started with Acorn 130

Initiating Acorn 130 procurement follows straightforward steps ensuring appropriate equipment selection and professional installation.

Step 1 – Initial inquiry: Call 0161 330 5544 to discuss requirements and confirm Acorn 130 suitability for your staircase.

Step 2 – Home survey: Free 30-45 minute assessment with Acorn 130 demonstration and feature explanation.

Step 3 – Quotation review: Written quote detailing Acorn 130 specification, options, and total cost.

Step 4 – Installation: 2-hour professional fitting by Acorn-certified engineers with full training.

Step 5 – Ongoing support: Annual servicing, warranty coverage, and emergency repair access.

Contact Manchester Stairlifts at 0161 330 5544 for free Acorn 130 consultations, home surveys, and professional installations from £995. As an authorized Acorn partner, we provide factory-trained installation, genuine parts, and manufacturer warranty support across Greater Manchester. Compare all stairlift options or explore curved Acorn 180 for complex staircases.
